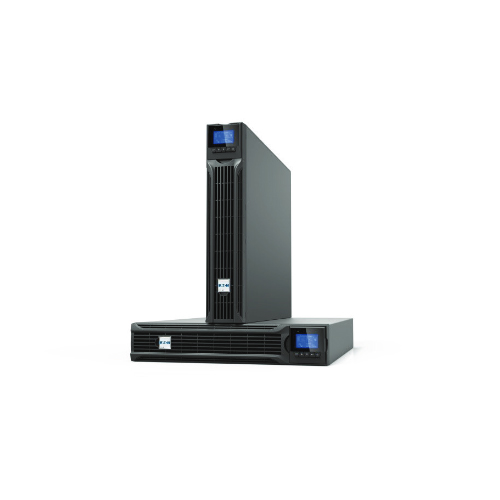

Eaton DXRT 10 kVA XL
Value Proposition:
High Flexibility and Availability
● Adjustable Battery Voltage 192 Vdc-240 Vdc.
● Adjustable Charging Current 0 A-12 Amps
● Parallel Operation upto 3 UPS’s.
● Better Short Ckt Handling Capacity.
● Auto Fault Recovery.
● Inbuilt Maintenance Bypass Switch.
● Conformal Coated Boards.
● PDU and MBS 2-in-1 kit support easy
maintenance.
● More Accessories.
High Reliability and Adaptability
● Wide Input Voltage Range
● Inbuilt Hardware Current Limit Technology.
● Upgraded Phase Lock Algorithm
● Inbuilt Over-voltage Cut-off Device
● Inbuilt Over Temperature Protection.
● Upto 50 Degree Celsius operation @50%
Load (Specific to XL Model)
● Better Overload Protection upto 105%
Constant
High Performance
● kVA=kW.
● Rack and Tower Convertible
● Form Factor 2U with <600 mm Depth.
● True Input PF 0.99
● True output Unity PF 1.
● Input THDi 3%.
● Output THDv 1%.
● Higher Power Density.
● Higher Efficiency upto 95%.
● Support Critical Virtualization.
GENERAL INFORMATION
| Parameter | Details |
|---|---|
| Model Name | DXRT10KS-IN |
| Catalog Name | DXRT10KS-IN |
| Plant Part Number | 9104-32687XT1 |
| UPC Code | 743172097170 |
INPUT SPECIFICATIONS
| Parameter | Details |
|---|---|
| Acceptable Input Voltage | 110VAC-275VAC |
| Phase | Single phase with ground |
| Input voltage range to take 50% load | 110VAC-275VAC |
| Input voltage range to take 100% load | 160VAC-275VAC |
| Inrush Current Limit | 8*Irms |
| Input Power Factor | ≥0.995 |
| Input Frequency Range | 45-55Hz / 54-66Hz (extendable to 40-70Hz when load < 60%) |
| Input Protection | Upstream breaker |
| Generator Set | 1.5 x UPS Rating Power |
OUTPUT SPECIFICATIONS
| Parameter | Details |
|---|---|
| Power (VA) max | 10000 |
| Power (W) max | 10000 |
| Power Factor | 1.0 |
| Waveform | Pure sine wave |
| Nominal Voltage | 208V/220V/230V/240V |
| Voltage Variation | ±1% |
| Voltage Distortion | <1% THD@ linear load, <5% @ non-linear load |
OUTPUT FREQUENCY
| Parameter | Details |
|---|---|
| Synchronization Range | 45-55Hz / 54-66Hz (extendable to 40-70Hz when load < 60%) |
| Slew Rate | 1 Hz/s |
| Battery Mode | (50/60±0.1) Hz |
TRANSFER TIME
| Mode | Transfer Time |
|---|---|
| Inverter Mode <-> Battery Mode | 0ms |
| Battery Mode <-> Inverter Mode | 0ms |
| Inverter Mode <-> Bypass Mode | 0ms |
FULL LOAD EFFICIENCY
| Parameter | Efficiency |
|---|---|
| Line mode with battery full charged | 95% @ 230V output with typical load |
| ECO mode | ≥98% |
OVERLOAD CAPABILITY
| Mode | Load (%) | Duration |
|---|---|---|
| Line Mode | 100% < Load ≤ 105% | Constant |
| 105% < Load ≤ 125% | 10 minutes | |
| 125% < Load ≤ 150% | 30 seconds | |
| >150% | 500ms | |
| Battery Mode | 100% < Load ≤ 105% | Constant |
| 105% < Load ≤ 125% | 1 minute | |
| 125% < Load ≤ 150% | 30 seconds | |
| >150% | 500ms | |
| Bypass Mode | 105% < Load ≤ 125% | Constant |
| 125% < Load ≤ 150% | 30 seconds | |
| Load > 150% | 500ms |
BATTERY SPECIFICATIONS
| Parameter | Details |
|---|---|
| Inner Battery Rating/Type | NO |
| External Battery Connection | Connector |
| Backup Time (50% Load) | / |
| Backup Time (70% Load) | / |
| Backup Time (Full Load) | / |
| DC Voltage | 192VDC (192V-240V adjustable) |
| Battery Low Voltage | 11.4V/pc |
| Battery Shutdown Voltage | 10.5V/pc |
| Leakage Current | <300uA |
| Battery Fuse Current | 100A |
CHARGER SPECIFICATIONS
| Parameter | Details |
|---|---|
| Charger Current | Default 4A (1.0-12A adjustable) |
| Floating Voltage Phase | 13.65V/pc |
| Charging Time | - |
FEATURES
| Feature | Availability |
|---|---|
| ECO Mode | YES |
| Battery Capacity Calculation | YES |
| Fan Speed Control | YES |
| Frequency Converter Mode (CVCF) | YES (50/60Hz) |
| Maintenance Bypass Switch | Factory optional |
| Parallel Capability | Optional (up to 3 units) |
INDICATOR & ALARM
| Condition | Indicator/Alarm |
|---|---|
| Display | Multi-language LCD + Status LED |
| Battery Mode | Beeps every second |
| Battery Low | Sounds every second |
| Overload | Sounds every two seconds |
| Fault | Continuous beeping |
INTERFACE
| Interface | Availability |
|---|---|
| RS232 | YES |
| USB | YES |
| EPO Function | YES |
| Comm Slot Box | YES |
| Communication Card | Optional (NMC/Modbus/Dry Contact) |
| Dry Contact (Dry in/Dry out) | YES |
| Input Connection | TB |
| Outlet Socket | TB |
MECHANICAL
| Parameter | Details |
|---|---|
| WxHxD (mm) | 43886.2573 |
| Net Weight (Kg) | 15 |
| Wheels | NO |
ENVIRONMENTAL
| Parameter | Details |
|---|---|
| Operating Temperature Range | 0°C – 40°C (40-50°C 50% load) |
| Relative Humidity | 0 – 95% (No condensing) |
| Audible Noise (>75% load, charger current >2A) | ≤60dB |
| Audible Noise (75% load, charger current <2A OR 50%-75% load, charger current >2A) | ≤55dB |
| Audible Noise (50%-75% load, charger current <2A OR 25%-50% load, charger current >2A) | ≤50dB |
| Audible Noise (25%-50% load, charger current <2A OR 0%-25% load) | ≤45dB |
REGULATIONS
| Regulation | Standard |
|---|---|
| ESD | IEC 61000-4-2 Level 3 |
| RS | IEC 61000-4-3 Level 3 |
| EFT | IEC 61000-4-4 Level 4 |
| Surge | IEC 61000-4-5 Level 4 |
| Conduction | IEC 62040-2 Category C3 |
| Radiation | IEC 62040-2 Category C3 |
| Safety | CE |
| Transportation | ISTA 1A |
| Protection | IP20 (static) |
| Performance Classification | VFI-SS-111 |
ACCESSORIES
| Accessory | Included |
|---|---|
| User Manual | Yes |
| Feet | Yes |
