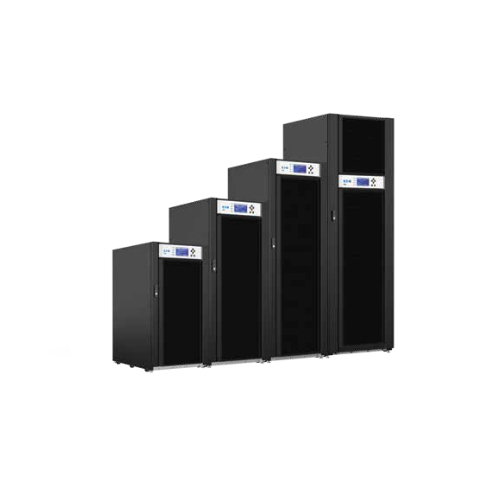

Eaton 93E UPS 15-80 kVA Technical Specifications
Power
| Parameter |
15 kVA |
20 kVA |
30 kVA |
40 kVA |
60 kVA |
80 kVA |
| UPS Output Power (kW) |
13.5 |
18 |
27 |
36 |
54 |
72 |
| UPS Topology |
multicolumn{6}{c}{Double Conversion Online UPS} |
|
|
|
|
|
| Distributed Paralleling |
multicolumn{6}{c}{Up to 4 units} |
|
|
|
|
|
| IGBT Technology |
multicolumn{6}{c}{Yes} |
|
|
|
|
|
| Efficiency in Online Mode |
multicolumn{6}{c}{Up to 96%} |
|
|
|
|
|
| Efficiency in High-Efficiency Mode |
multicolumn{6}{c}{Up to 98%} |
|
|
|
|
|
| UPS Dimensions (W×D×H) mm |
500×700×1300 (15/20/30 kVA with internal batteries) |
|
|
|
|
|
| |
500×700×1300 (40 kVA) |
|
|
|
|
|
| |
500×815×1800 (60/80 kVA) |
|
|
|
|
|
Weight
| Configuration |
15 kVA |
20 kVA |
30 kVA |
40 kVA |
60 kVA |
80 kVA |
| Without Internal Batteries (kg) |
91 |
92 |
100 |
110 |
220 |
240 |
| With Internal Batteries (kg) |
275 |
320 |
400 |
N/A |
N/A |
N/A |
Noise & Environment
| Parameter |
Value |
| Audible Noise (1m at full load) |
≤ 48dBA |
| Operating Altitude |
1000m without derating (max 2000m) |
| Protection Rating |
IP20 with standard washable dust filters |
Input
| Parameter |
Value |
| Input Wiring |
3Ph + N |
| Nominal Voltage |
220/380V, 230/400V, 240/415V |
| Voltage Tolerance |
+10% / -20% from nominal voltage at 100% load |
| Power Factor |
>0.99 typical |
| Internal Backfeed Protection |
Yes |
Output
| Parameter |
Value |
| Output Wiring |
3Ph + N |
| Nominal Voltage & Frequency |
380/400/415V & 50/60 Hz |
| Voltage Regulation |
±1% Static, ±5% Dynamic at 100% resistive load |
| Waveform |
Pure Sine Wave |
| Permitted Load Power Factor |
0.8 to 1.0 (lagging to leading) |
| Overload Capacity on Inverter |
105% for 10 min, 125% for 1 min, 150% for 30s |
| Overload Capacity on Bypass |
110% continuous, 125% for 10 min, 150% for 1 min, 1000% for 100 ms |
Battery
| Parameter |
Value |
| Battery Type |
VRLA |
| Battery Charging |
ABM / Float Charge |
| Nominal Battery Voltage (Internal) |
384 V DC (32x12V) |
| Nominal Battery Voltage (External) |
192V / 204V / 216V / 228V / 240V |
| Charging Current (A) |
15 kVA - 6A, 20 kVA - 8A, 30 kVA - 12A, 40 kVA - 16A, 60 kVA - 24A, 80 kVA - 26A |
Accessories & Features
| Parameter |
Value |
| Battery Cabinets, Switches, Filters |
Yes |
| Display |
Graphical LCD with White Backlight |
| Audible Alarms |
Yes |
| Monitoring & Communication |
Eaton Intelligent Power Manager |
| Communication Ports |
RS232, USB, Mini-Slots |
| Compliance & Standards |
IEC 62040-1 (Safety), IEC 62040-2 (EMC), IEC 62040-3 (Performance) |
| WEEE & RoHS |
EU Directive 2011/65/EU, 2012/19/EU |
Buy Eaton 93E GL (15–80) kVA Three Phase UPS Gurgaon, Noida, Delhi/NCR
Buy the high-performance Eaton 93E GL (15–80) kVA Three Phase UPS in Noida, Delhi, and Gurugram from Feedline Power Products, your trusted three phase UPS sales & service provider in Delhi, Gurgaon & Noida NCR. Engineered for maximum efficiency and reliability, the Eaton 93E GL series is ideal for mission-critical business applications requiring robust power backup. We also offer the Eaton 93E GL (15–80) kVA UPS, perfect for both UPS for home in Delhi and UPS for business in Noida. Whether you're looking for a compact three phase UPS or a high-capacity system, Feedline Power Products delivers expert guidance, competitive pricing, and professional after-sales service across the NCR region.
